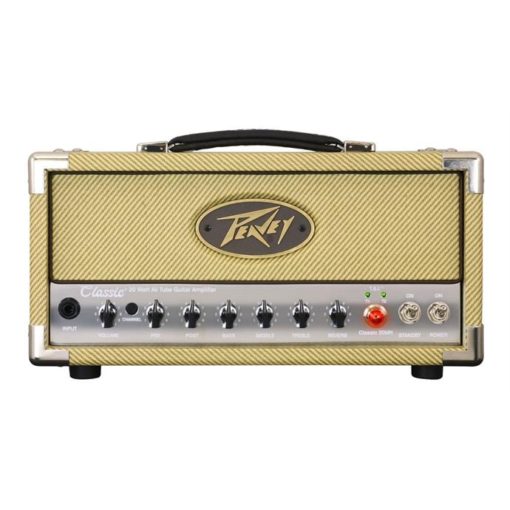

Revered by blues, country and rock players alike, Peavey Classic amps span the tonal landscape from vintage to contemporary with ease, and the Classic 20 MH provides that tone in a highly portable package.
The all-tube, 20-Watt Classic 20 MH is powered by two EL84 power tubes and 3 12AX7/ECC83 preamp tubes. It has two channels that follow the same gain structure and voicing of the Peavey Classic series amps for pure and versatile tone. The channels share a three-band EQ, lush reverb and an effects loop. The channels, effects loop and reverb are all footswitchable.
Peavey’s TSI™ tube monitoring alerts players of power tube status, and in the event of a necessary tube replacement, identifies which tube needs to be replaced. Rear panel features such as a Microphone Simulated Direct Interface (MSDI™) with XLR output and USB out, speaker defeat switch and 3 position power attenuator switch make the Classic 20 MH mini head perfect for studio environments.
|Attenuator switch for 20 watts, 5 watts or 1 watt output power|
|Two EL84 power tubes and three 12AX7/ECC83 preamp tubes|
|Two footswitchable channels with 3-band EQ|
|Footswitchable global volume boost, reverb, and effects loop|
|Tube Status Indication (T.S.I.™ circuit|
|MSDI™ Output with XLR and ground lift switch|
|Speaker defeat switch|
|Impedance switch for 16 or 8 ohm cabinets|
|Weight Unpacked: 16.75 lb(7.6 kg)|
|Weight Packed: 20.50 lb(9.3 kg)|
|Width Packed: 13.25″(33.655 cm)|
|Height Packed: 19.375″(49.2125 cm)|
|Depth Packed: 12.375″(31.4325 cm)|
