Community MVP25 Two-Way Trapezoidal Loudspeaker with 90° X 40° HF Horn (MVP-25, MVP 25, MV-P25, MV P25)
Community MVP25; Two-Way Trapezoidal Loudspeaker with 90° X 40° HF Horn; Loudspeaker Type: Two-way, full-range; Operating Range: 70 Hz – 16 kHz 80 Hz – 14 kHz (+/-4.5dB); Max Input Ratings: 150W continuous, 375W Program 35 volts RMS, 77 volts momentary peak Recommended Power Amplifier; For maximum SPL: 310W to 450W @ 8 Ohms Sensitivity 1W/1m; 94 dB SPL (80 Hz – 12.5 kHz 1/3 octave bands); 94 dB SPL (250 Hz – 4 kHz speech range); Maximum Output: 116 dB SPL / 123 dB SPL (peak); Nominal Impedance: 8 Ohms; Min Impedance: 3.9 Ohms @ 10570 Hz;

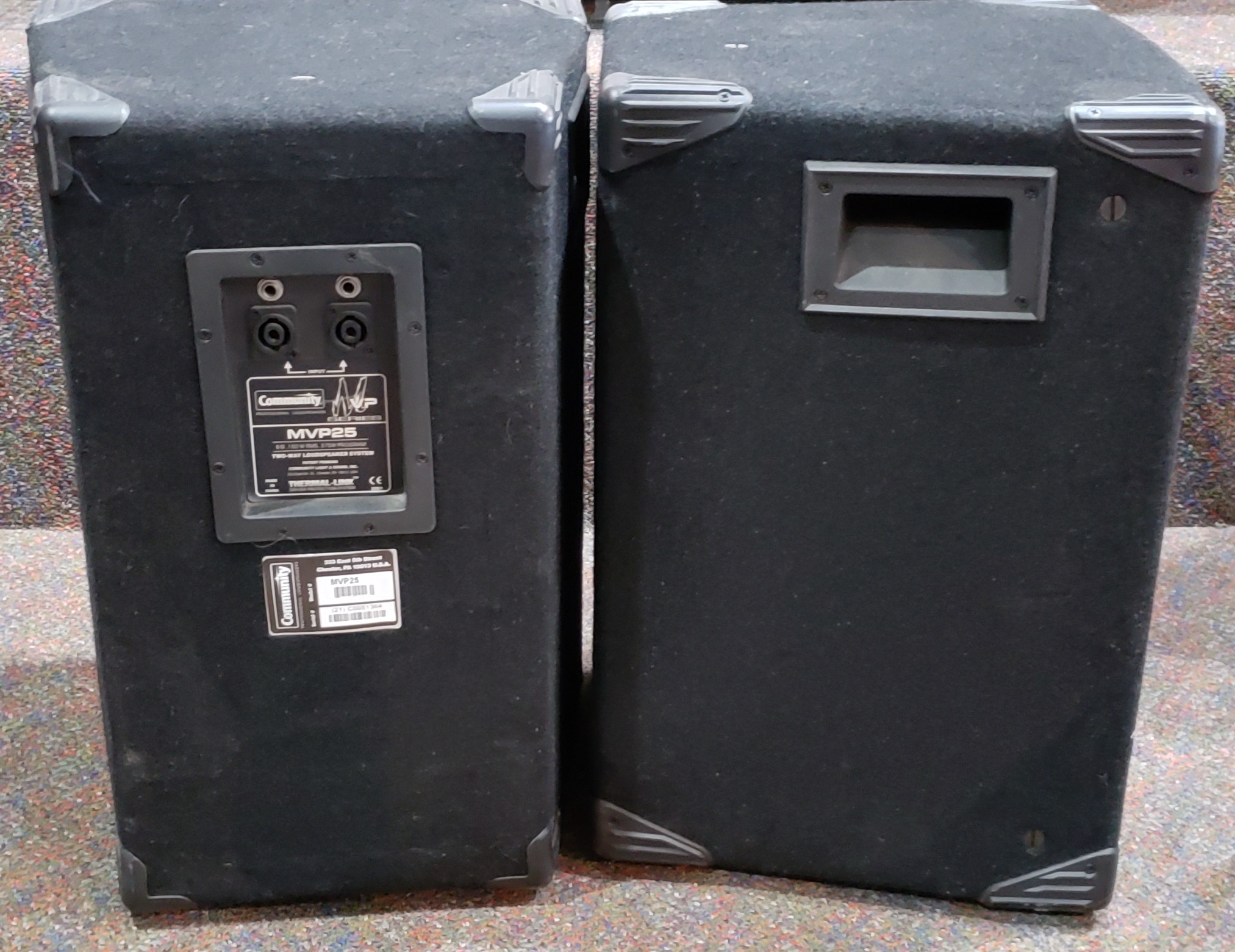

The MVP25 is a rugged, high-sensitivity, two-way, full-range loudspeaker system. The system utilizes one LM20â„¢ proprietary high-frequency compression driver coupled to an exponential horn and one 12″ woofer for high sensitivity and excellent power handling capability. These components are matched to an optimally tuned direct radiating bass reflex enclosure. The recessed handles, black carpeted exterior and injection molded corners also make this system attractive, rugged and easily transportable. The MVP25 offers a robust internal crossover with Thermal Linkâ„¢ Dynamic HF Driver Protection. The crossover is built to last with high quality inductors, precision wound coils and military grade circuit boards. The proprietary Thermal Linkâ„¢ Dynamic HF Driver Protection circuit provides both over-current and thermal protection for added performance and reliability. Designed as a stand-alone full-range loudspeaker system, the MVP25 offers enough bass for most foreground/background and speech reinforcement applications. For more demanding applications, extended bass can be achieved by adding a MVP subwoofer. Installation is easily accomplished utilizing the threaded inserts provided and optional mounting kits.
