ROLAND V-Drums

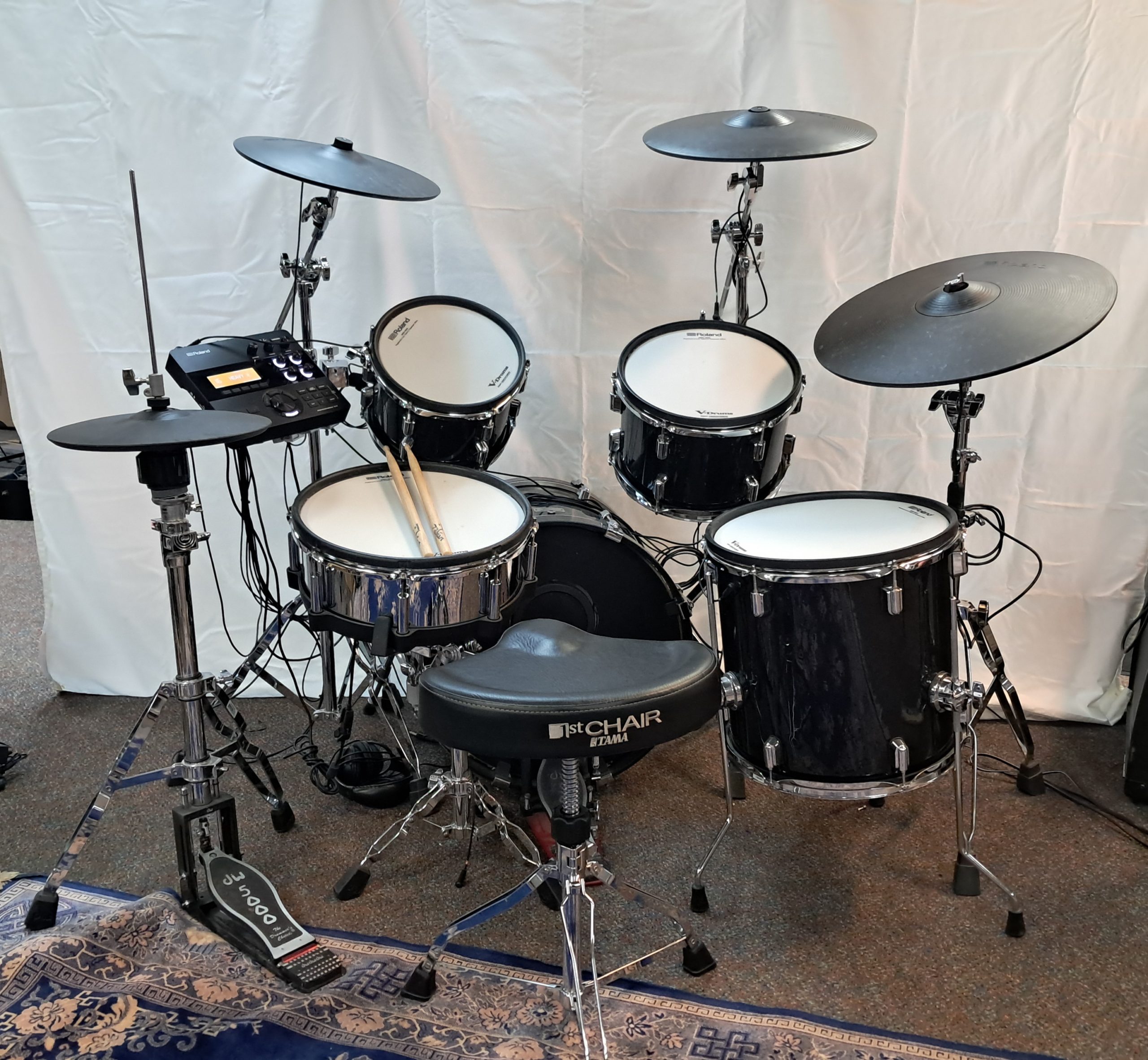

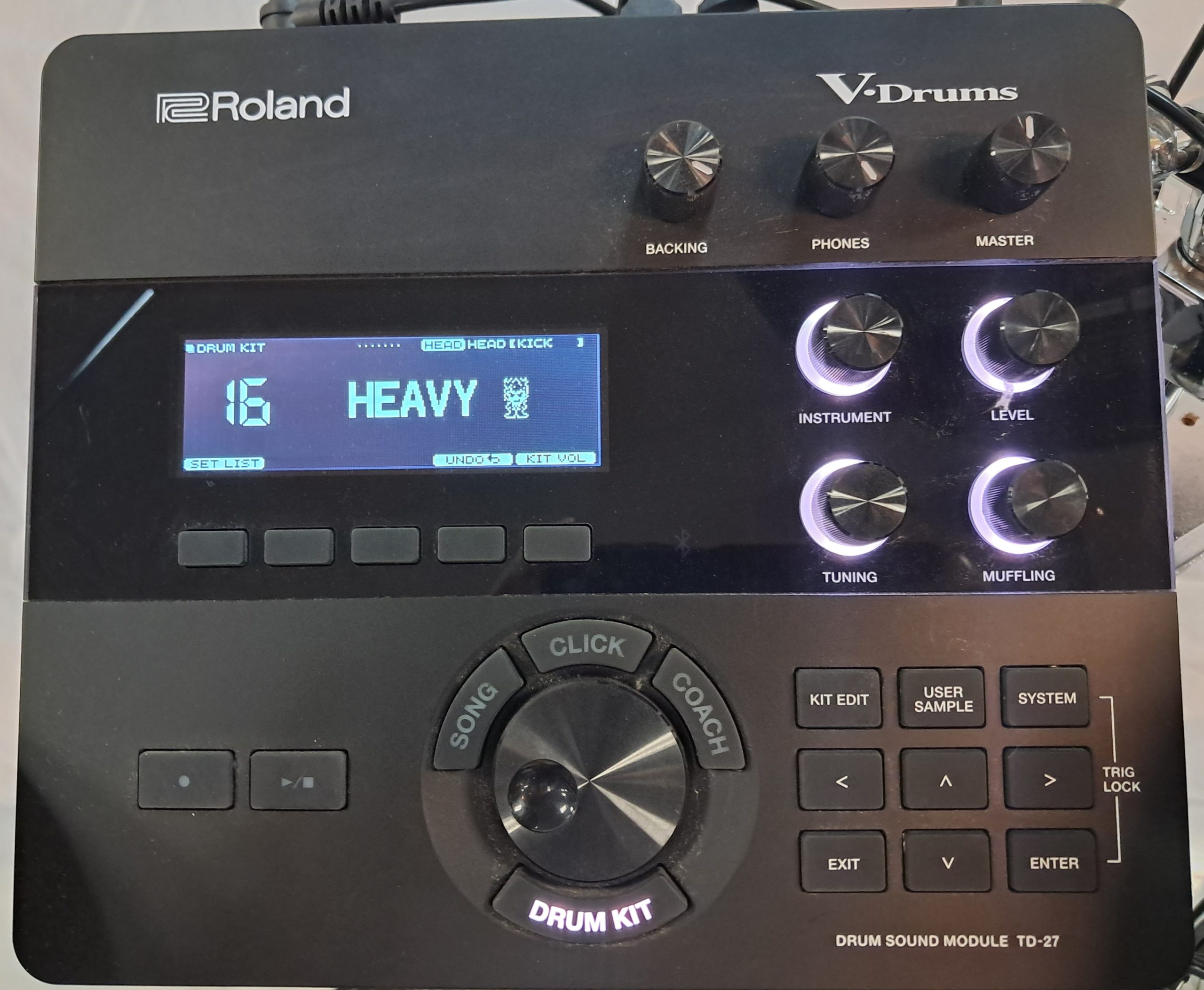

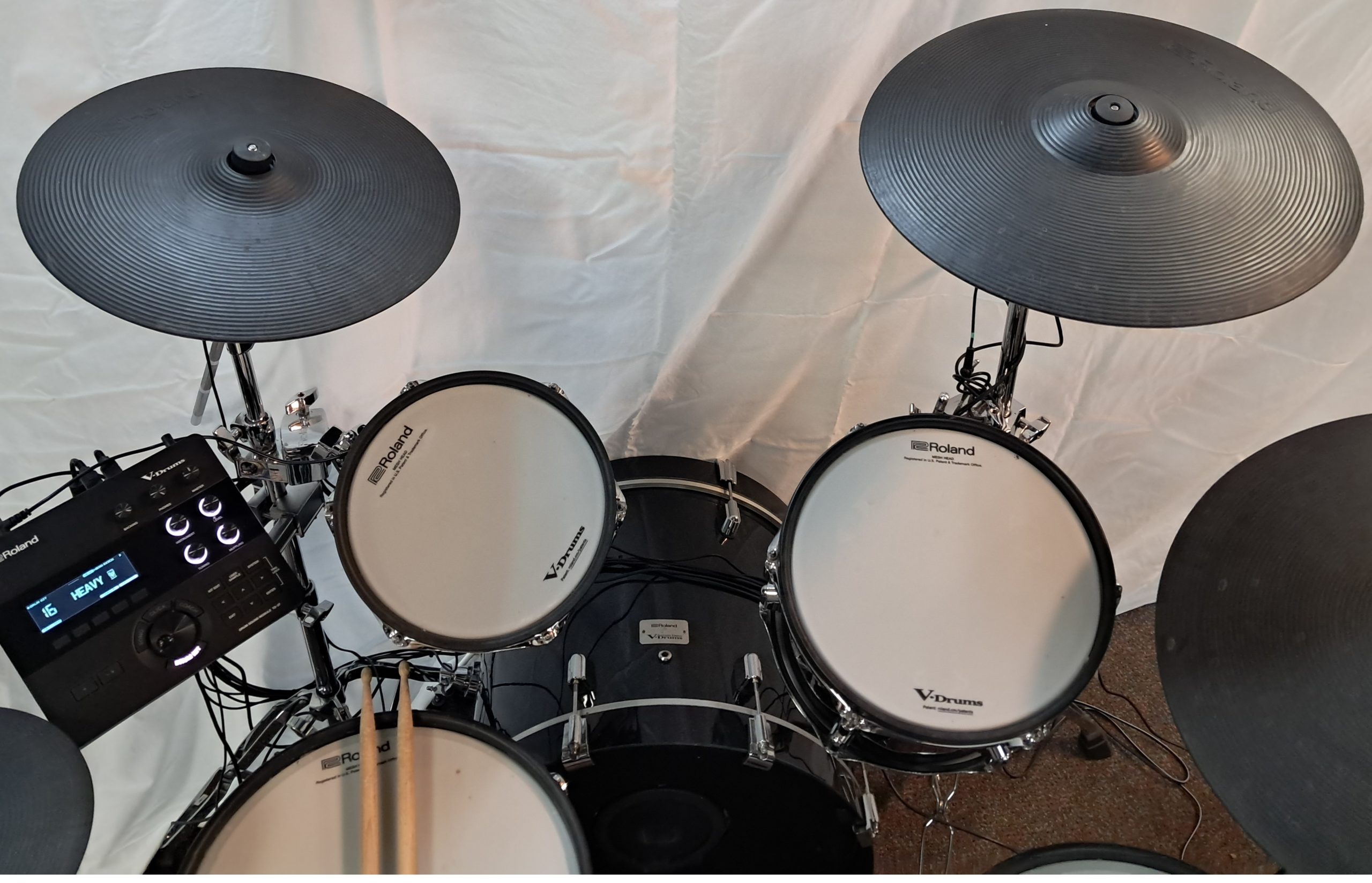

This is a deal of epic proportion! JUST the TD27 module retails from $800 – $1500. This kit has the TD27 module mounted on the rack above the snare. The standard VAD516 has a different module that mounts on its own stand – and that is not included in this set. This set includes the acoustic design drum kit with the rack mounted drum module.

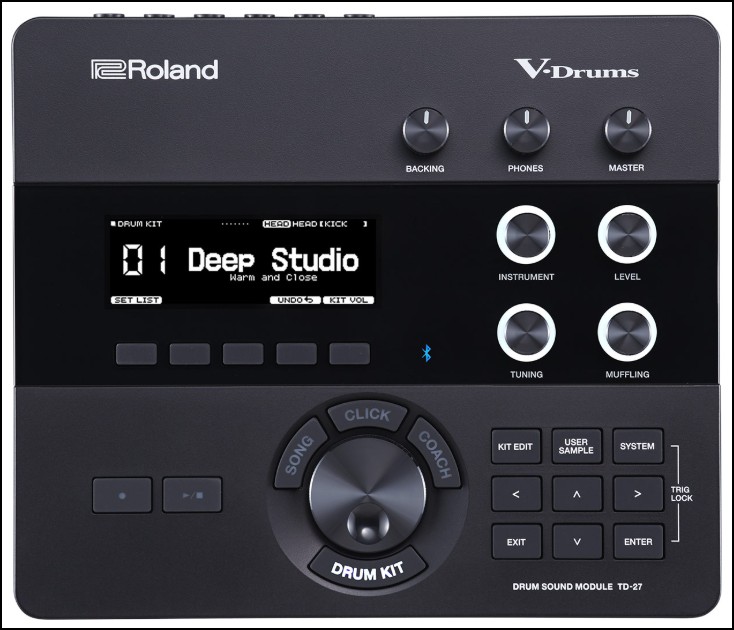

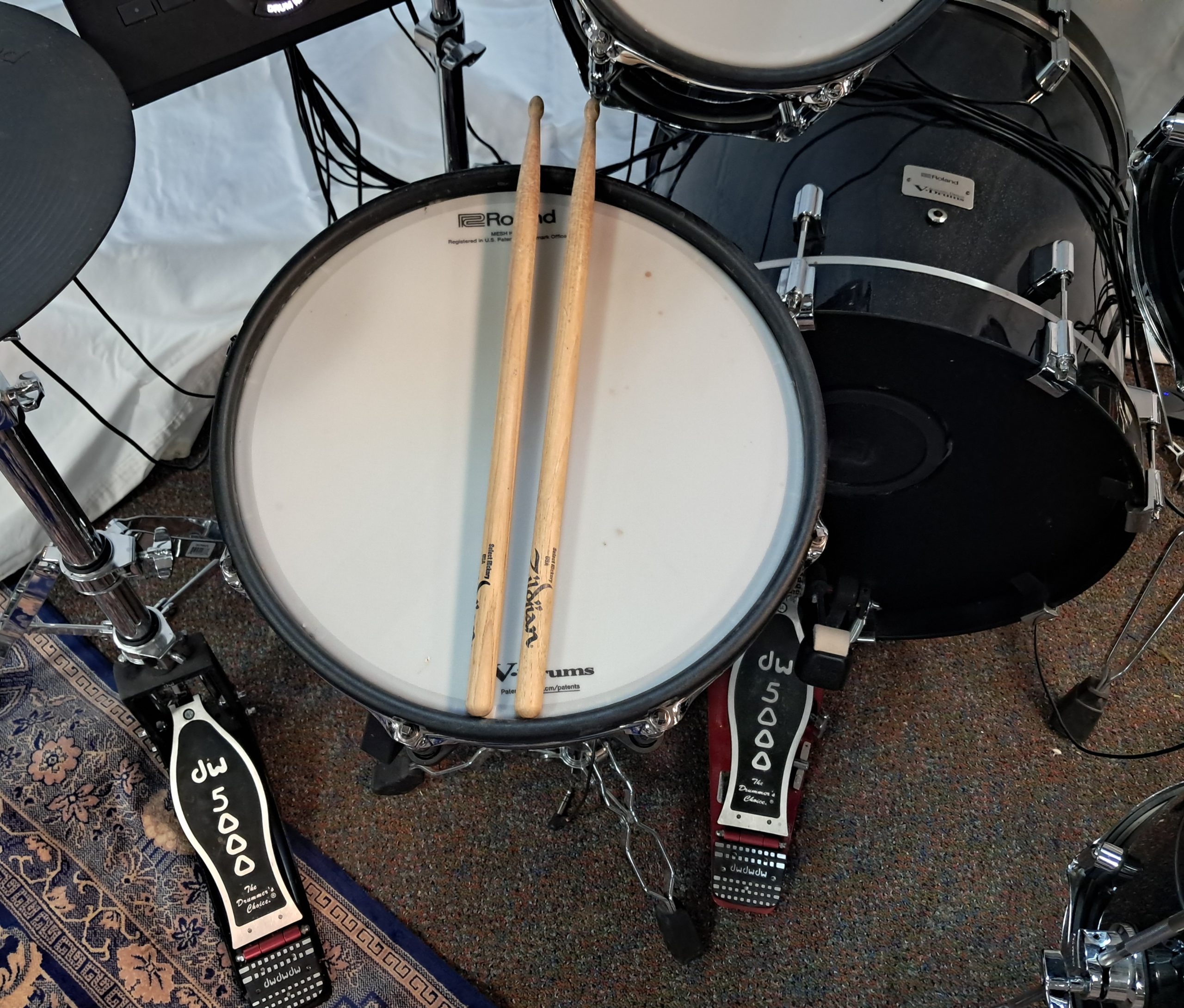

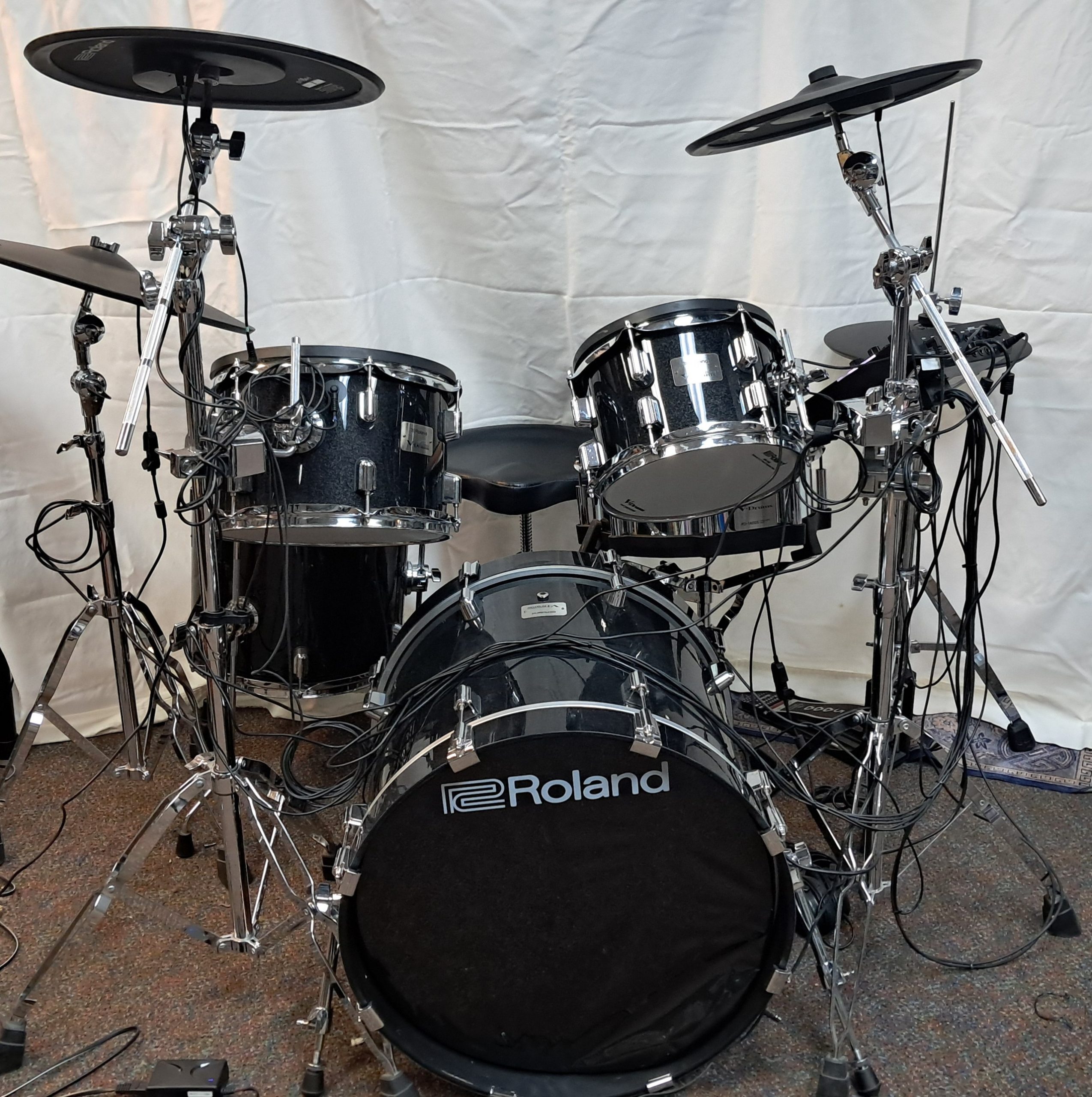

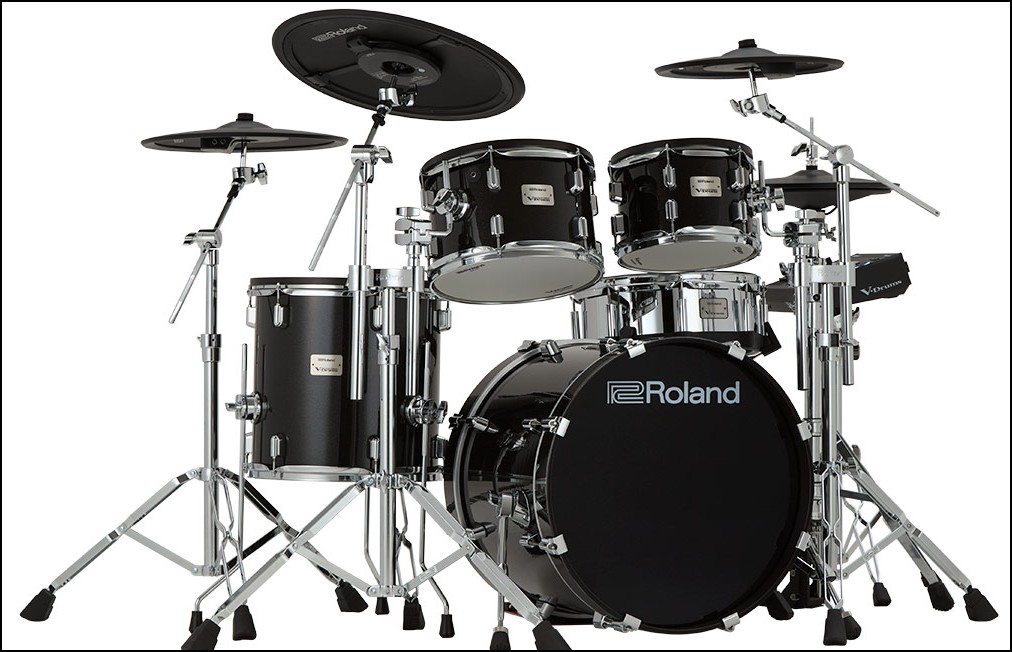

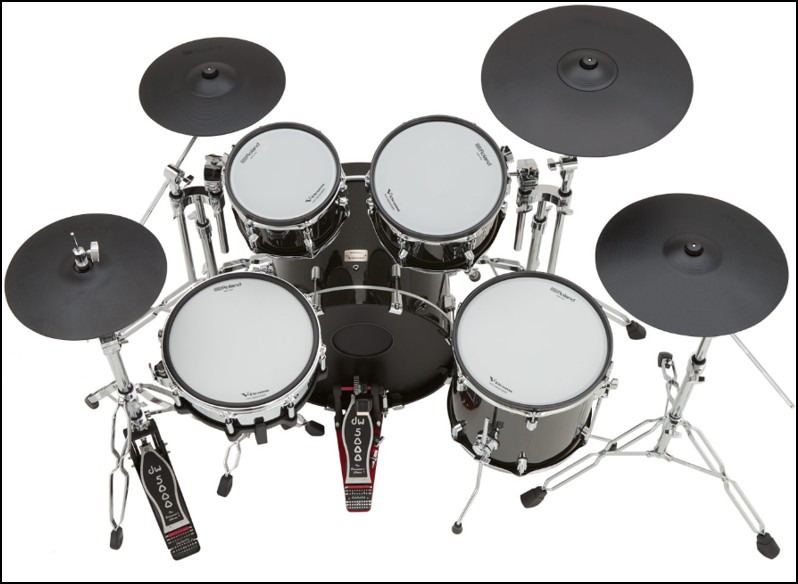

Photos are of the actual drum set in our store as well as generic stock photos from the Roland website with a full white background.
TD-27
Drum Sound Module
Flagship-Class Sound, Maximum Expression
Newly updated and enhanced, the TD-27 V-Drums sound module is loaded with the finest acoustic drum sounds you’ve ever heard. Roland’s Prismatic Sound Modeling produces drums that not only sound exceptional, but also respond just like real acoustic instruments when you play them. Advanced digital trigger inputs support Roland digital pads for unmatched expression, while PureAcoustic Ambience Technology offers a variety of inspiring drumming spaces at the touch of a button. A wide selection of electronic sounds from Roland’s rich sonic history are also included, providing must-have sounds for modern styles. And by loading and layering your own samples with internal drums, you’re able to craft sounds that no other drummer can claim.
Features:
- Updated sound module with enhanced features and advanced Prismatic Sound Modeling derived from the flagship TD-50X
- 75 ready-to-play preset kits, including 10 all-new kits and a variety of new samples
- Three digital trigger inputs for advanced Roland trigger pads like the 14-inch PD-140DS digital snare, 14-inch VH-14D digital hi-hat, and 18-inch CY-18DR digital ride cymbal
- Updated module interface for even faster sound selection and drum customization
- Drum in a variety of hyper-realistic sound spaces with PureAcoustic Ambience technology
- Enhanced layer and transient functions plus support for parallel compression
- Overhead mic simulator and studio-level effects for processing drum sounds
- Import your own WAV samples via an SD card
- Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
- Integrated 28-channel USB audio interface for professional computer music production
- Multi-pin trigger jack and included cable for connecting with a standard V-Drums pad setup
- Dedicated Crash 2 trigger input and three auxiliary trigger inputs for easy kit expansion
- Onboard Bluetooth® for drumming with music from a smartphone or laptop
- Built-in practice functions for developing drumming skills
- Specifications
- Drum kits
- 100 (Preset: 75 *5)
- Instruments
- 728
- User Sample Import
- Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits) - Effect Types
- Pad Compressor: each pad
Pad Equalizer: each pad
Overhead Mic Simulator
Room/Reverb
Multi-Effects: 3 systems, 30 types
Master Compressor
Master Equalizer - Bluetooth
- Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) - Song Player (SD Card)
- File format: WAV (44.1 kHz, 16/24 bits), MP3 *1
- Recorder
- Recording Method: Realtime
Maximum length: 60 min (temporary recording: 3 min) *2
File format: WAV (44.1 kHz, 16 bits) - Display
- Graphic LCD 256 x 80 dots

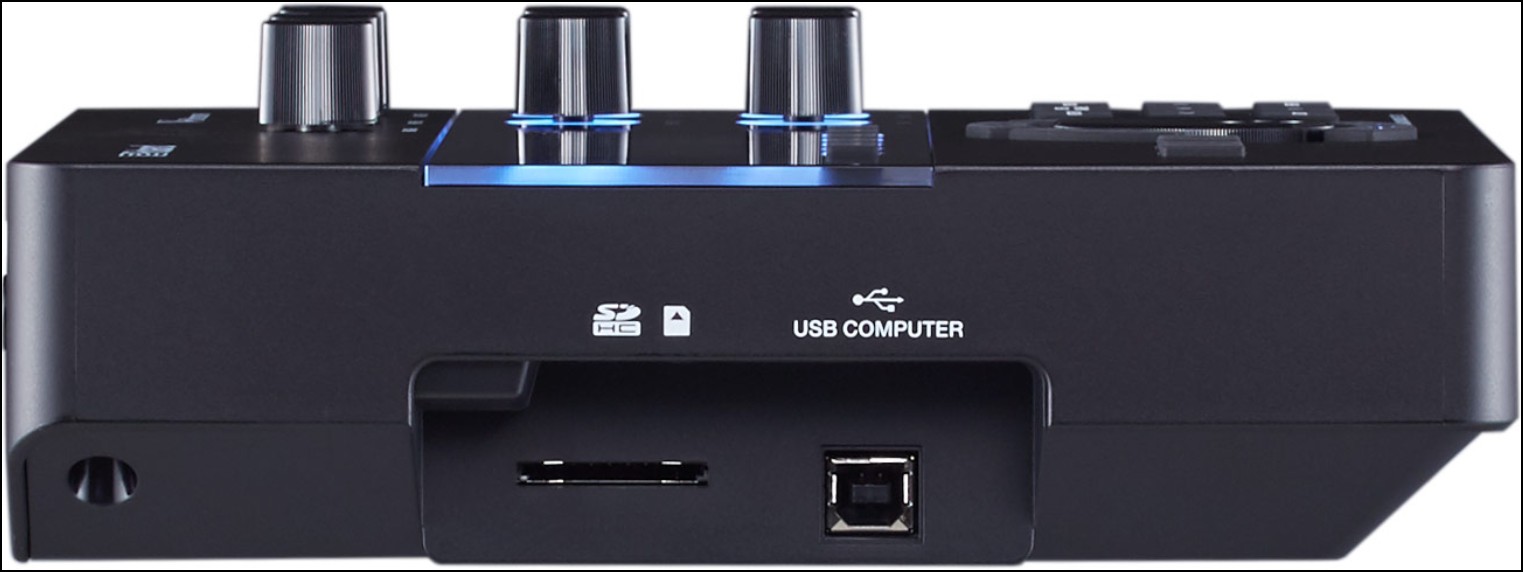

- External Memory
- SD Card (SDHC supported)

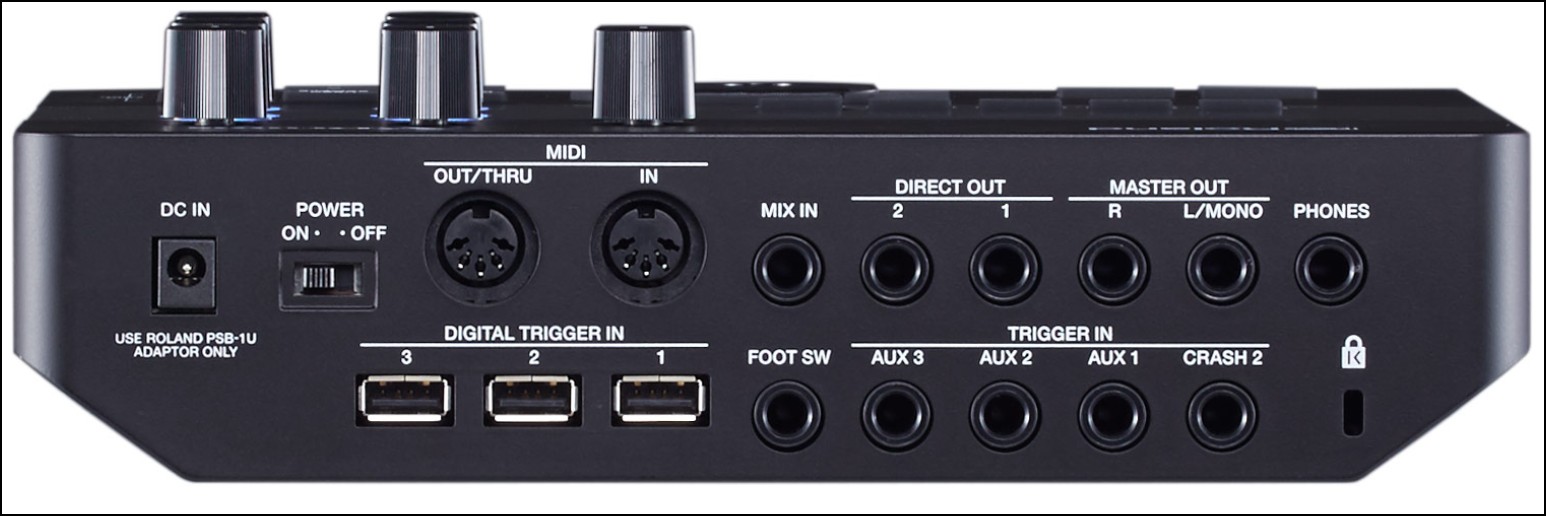

- Connectors
- TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) *3
TRIGGER IN jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX1, AUX2, AUX3) *3
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT jacks (L/MONO, R): 1/4-inch phone type
DIRECT OUT jack x 2 (MONO): 1/4-inch phone type
PHONES jack x 1: Stereo 1/4-inch phone type
MIX IN jack x 1: Stereo 1/4-inch phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port x 1: USB B type
FOOT SW jack x 1: 1/4-inch TRS phone type
DC IN jack - USB COMPUTER
- Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *4 - USB Audio
- Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 28 channels
Playback: 4 channels - Power Supply
- AC adaptor (DC 9 V)
- Current Draw
- 770 mA
- Size and Weight
- Dimensions
- 238 (W) x 204 (D) x 79 (H) mm
9-3/8 (W) x 8-1/16 (D) x 3-1/8 (H) inches - Weight (excluding AC adaptor)
- 1.1 kg
2 lbs 7 oz - *1 Audio files must be saved on an SD card.
- *2 Song recording requires an SD card. If no SD card is inserted, the TD-27 can record approximately 3 minutes of audio to temporary memory.
- *3 Digital pads not supported.
- *4 USB audio requires the vendor driver and switching the module to vendor mode.
- *5 TD-27 Version 2.0 adds 10 preset kits and additional kit updates. Later in 2022, current TD-27 module owners will be able to download the Version 2.0 update for free on Roland Cloud.
Designed for serious drummers, the V-Drums 5 Series delivers pro-level performance for every musical need. The V51 module hits the sweet spot within the next-gen V-Drums universe, putting the flagship sound engine from the V71 in a versatile hardware platform with full digital pad support, robust I/O, and seamless integration with DW Soundworks software for computer-based drumming. And with built-in wireless connectivity, it’s easy to grow your setup with an ever-expanding range of sound expansions and other V-Drums content on Roland Cloud.
The VAD516 V-Drums Acoustic Design kit is the pinnacle of the V-Drums 5 Series, combining the immersive look, feel, and stage presence of a traditional acoustic set with Roland’s premium digital pads and advanced V-Drums features. From stage performances and studio recording to creating content at home, the VAD516 offers the expression and detail you expect from an acoustic kit, paired with the control and convenience V-Drums are famous for.
